HUNT Target 2 trigger mech
$129.00 NZD
3 in stock
3 in stock
Eligible for returns.

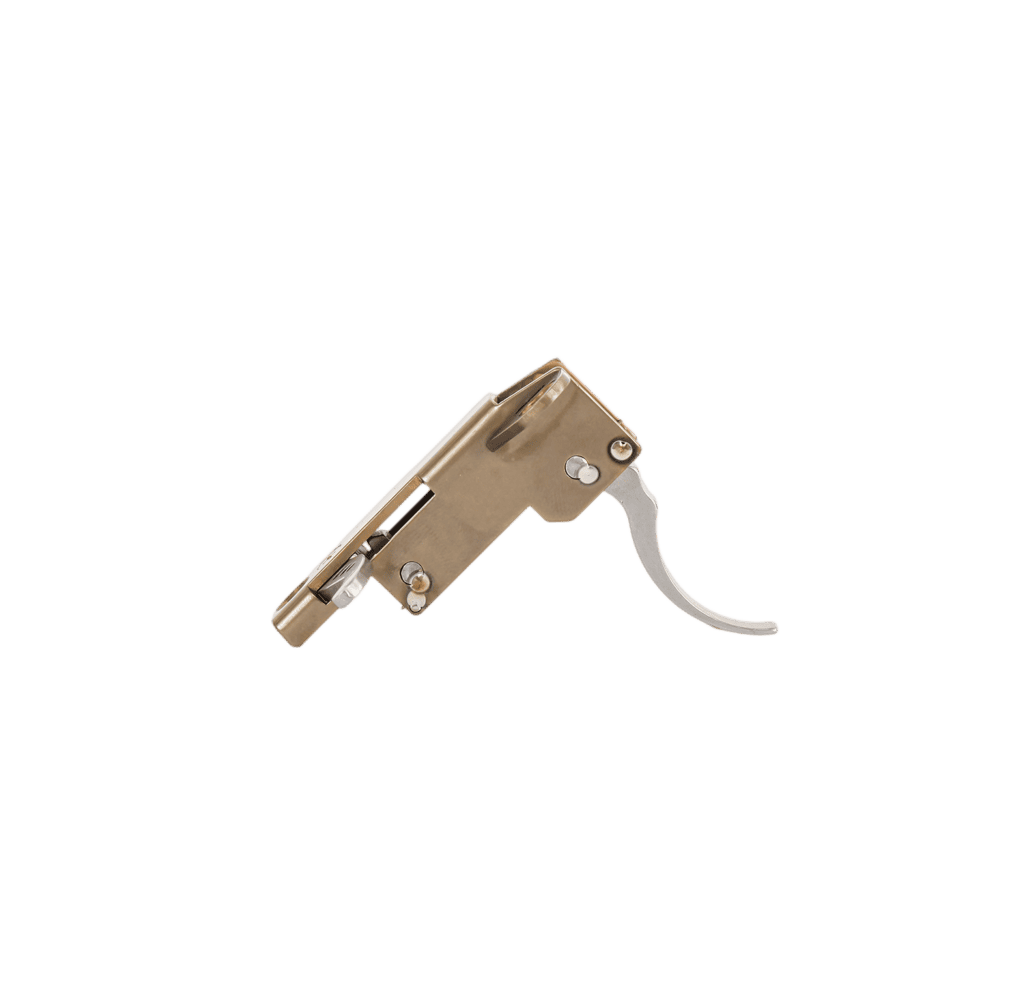

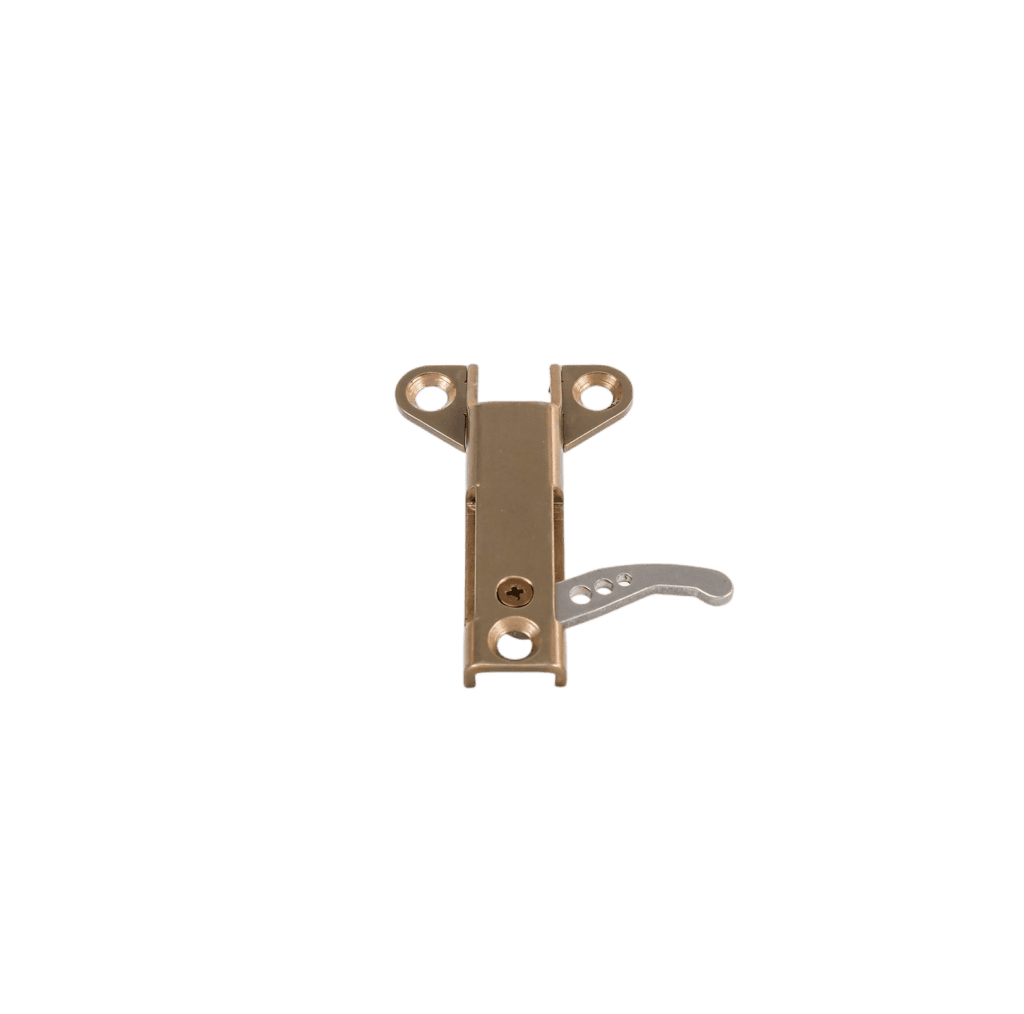

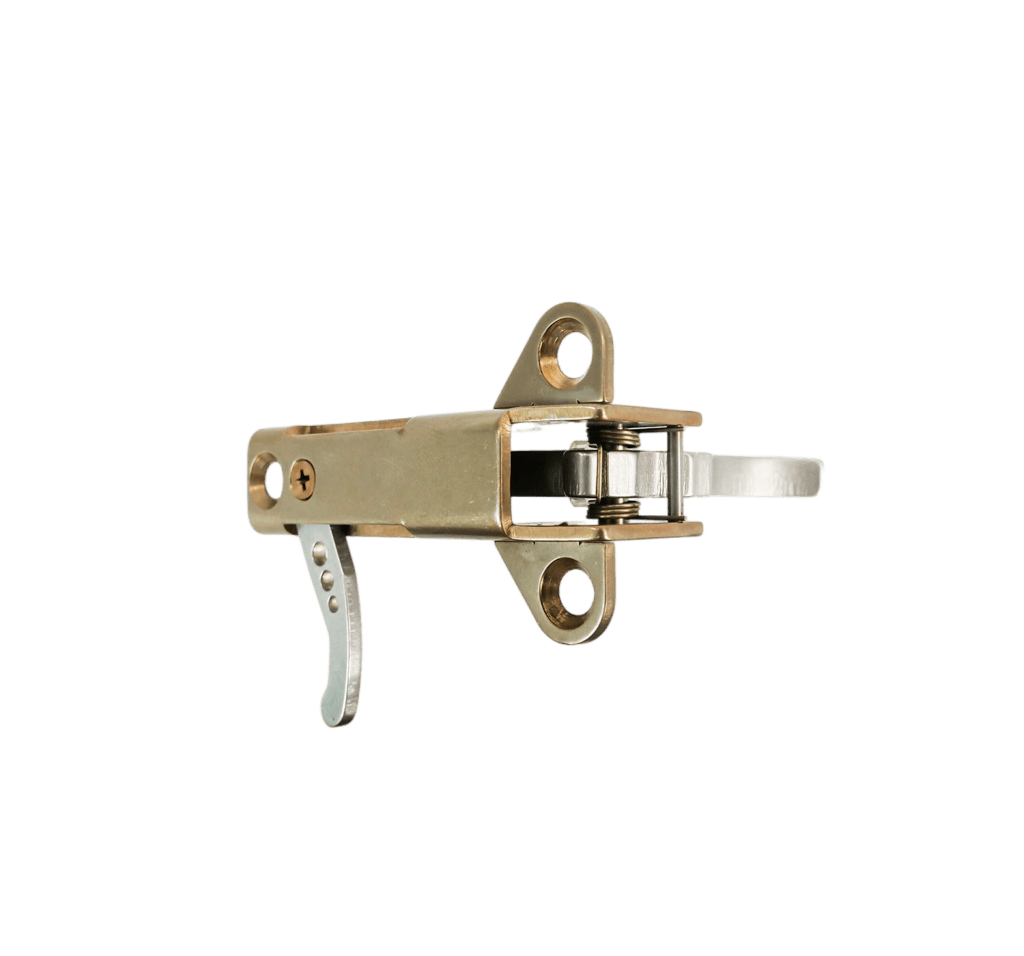

The firing mechanisms Hunt are made entirely out of AISI 316, as well as the firing box (thickness 2mm), ensuring great strength . It has the retention of the line system integrated; the trigger is semi-curve shaped as the most important semi-automatic terrestrial hunt weapons. The models Hunt Target is barrel-finished in whole its parts, and fine finished; the cut where is located the line releasing is C.N.C. machined in a later step in order to guarantee an excellent opening. The line releaser works on the side of the sprocket releaser, so even if the line is much pulled the trigger weight does not increase . The line release is located on the right side and has a proper size: 22mm in length with a thickness of 2.5 mm. The safety tests performed on the traction mechanism is 500 kg; The trigger weight is 1.5 kg and holds up to 180 kg shaft traction (5-6 elastic 16 diameter at 320 % elongation ). The sensation of the shot is a mechanism sensitive and very fluid: the trigger stroke is short but very intuitive and plus the Hunt Target are compact and very backward and allow you to make the boost of the rubber bands for a stroke 4/5 cm more than a traditional mechanism. The engagement sprocket and the trigger are made in AISI 316 thickness 6mm. The part of the mechanism that is hosted in the barrel of the speargun is 47mm long with a thickness of 16mm and height of 18mm . The strength point is the sensitivity of firing due to very long levers that minimize the force applied to the trigger The Hunt Target 2 has a simplified mounting system: 3 screws at the top; therefore has two “ears” in the font part, TIG welded, perfectly leveled with the rear. |
